Removal And Installation: Notes

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check of occupant classification sensor after the seat has been installed in the vehicle. (Refer to ON-VEHICLE SERVICE .)
CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE-AIRBAG MODULE(S) .

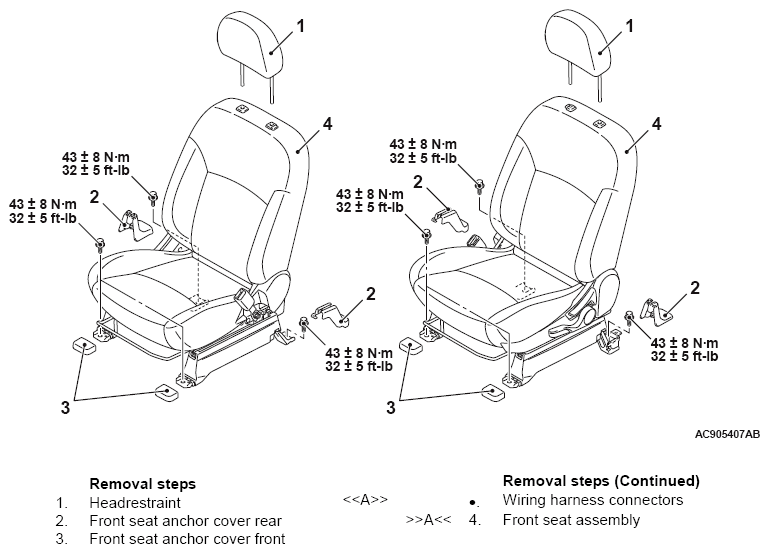

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specification
G10231968Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
