Band Installation

CAUTION:
  • Hold the rack housing, and use the special tool to crimp the bellows band securely.
  • Crimp the bellows band until the special tool touches the stopper.
  1. Use special tool MB992209 to crimp the bellows band.

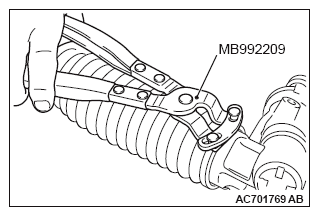

    Fig 1: Crimping Bellows Band Using Special Tool
    G10231472Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check that crimped width (A) is within the standard value.

    Standard value (A): 2.4 - 2.8 mm (0.10 - 0.11 inch)

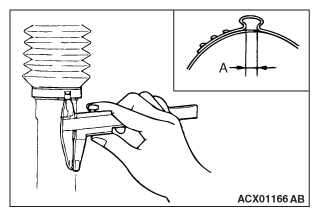

    Fig 2: Checking Crimped Width
    G06700031Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
