Disassembly And Assembly: Notes

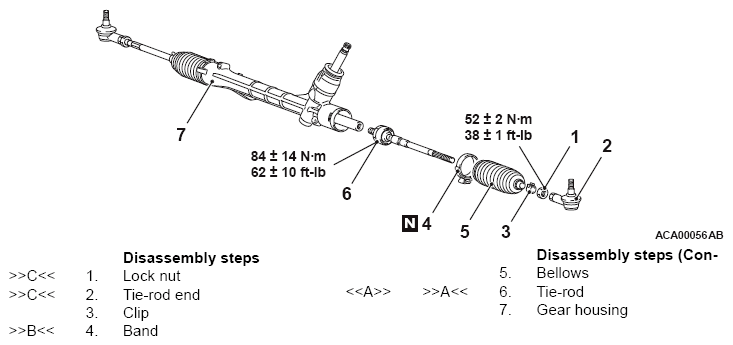

Fig 1: Disassembling/Assembling Power Steering Gear Box And Linkage With Torque Specification
G10231468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
