Steering Lock Bolt Removal

  1. Use a drill to make a hole just deeply enough for the tap to stand on the steering lock bolt.
  2. Remove the steering lock bolt using recommended tool screw extractor (MB992678) or equivalent.

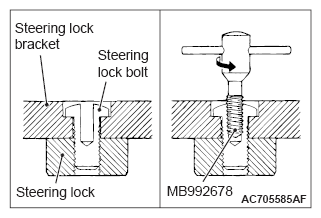

    Fig 1: Removing Steering Lock Bolt
    G07048550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
