Steering Column Band Installation

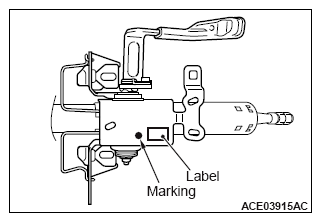

Fig 1: Identifying Steering Column Mark And Label

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

There must be no clearance between the torque sensor wiring harness and the housing.
Guide the steering column band between the sensor housing mounting bolt and the projection on the worm housing.
On completion, check the followings.
- The wiring harness must be free of twists, sharp bend.
- The wiring harness must be secured without looseness.

Tie the wiring harness wires with the steering column band.

Fig 2: Identifying Steering Column Band, Sensor And Mounting Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
