Control System Component Part Configuration Diagram

Name	Symbol
CVT assembly (Solenoid valve assembly, transmission fluid temperature sensor)	D
Data link connector	H
Paddle shift switch	G
Primary pulley speed sensor	E
Secondary pulley speed sensor	A
Shift lock solenoid	I
Shift switch assembly	I
TCM	F
Transmission range switch	B
Turbine speed sensor	C

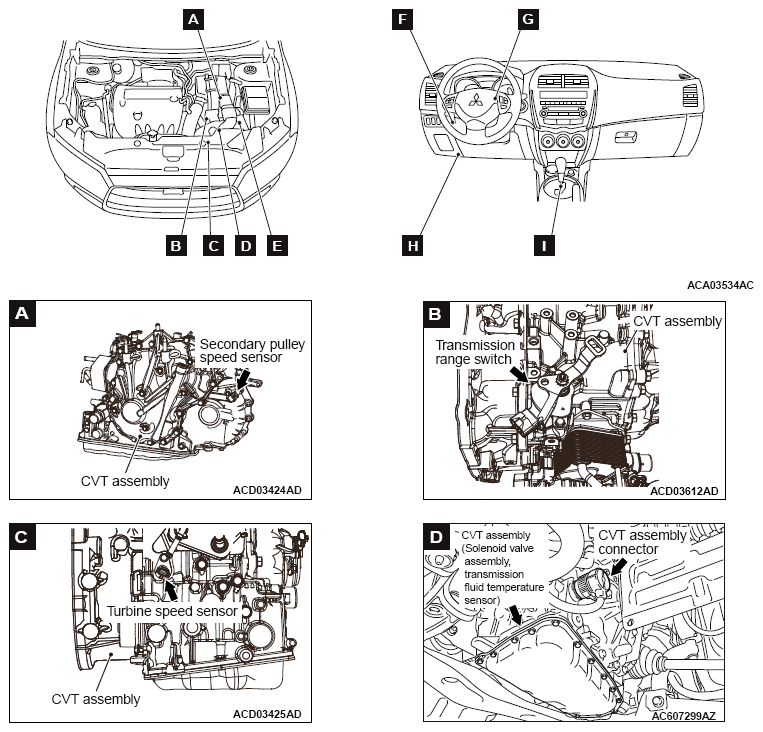

Fig 1: Control System Component Part Locations (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

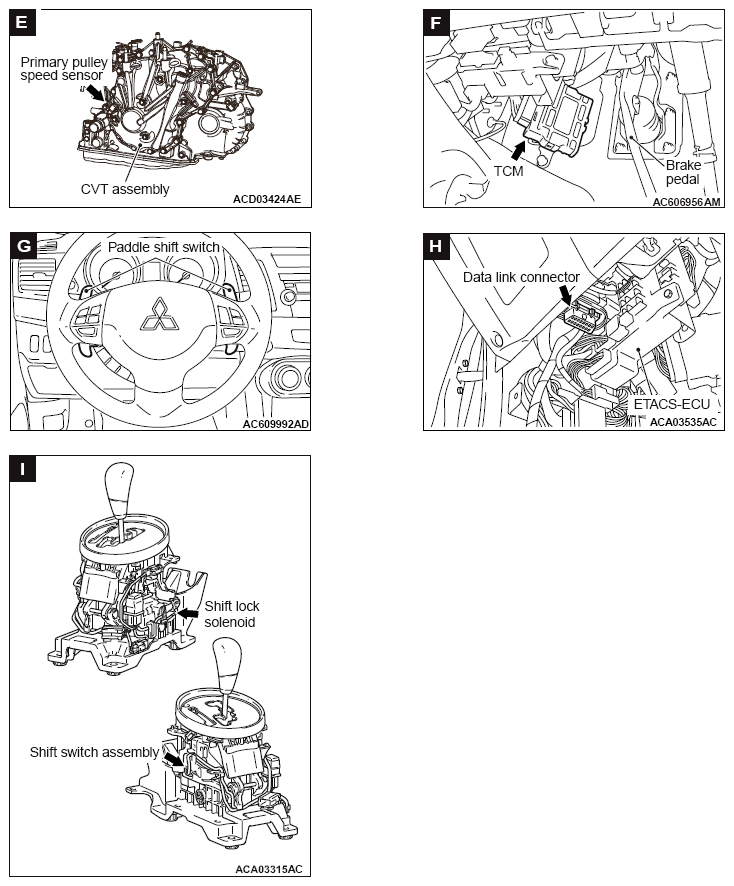

Fig 2: Control System Component Part Locations (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
