Reverse Gear And Synchronizer Hub No. 1 Installation

  1. Install the reverse gear onto the synchronizer hub in the illustrated direction.
    NOTE: Apply gear oil to the sufficiently on the sliding surface

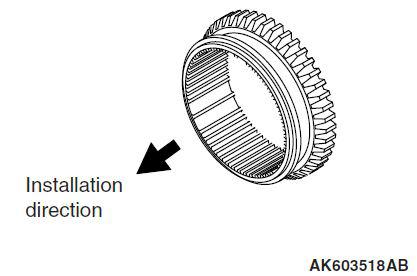

    Fig 1: Installing Reverse Gear On Synchronizer Hub
    G05375687Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Using special tools MD998812, MD998814 and MD998819, install the synchronizer hub and reverse gear.
  3. After installation, confirm the 1st gear slides smoothly.
    Fig 2: Installing Synchronizer Hub And Reverse Gear Using Special Tools
    G05375688Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
