DTC B2352: Antenna fail
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B2352: Antenna fail: Notes

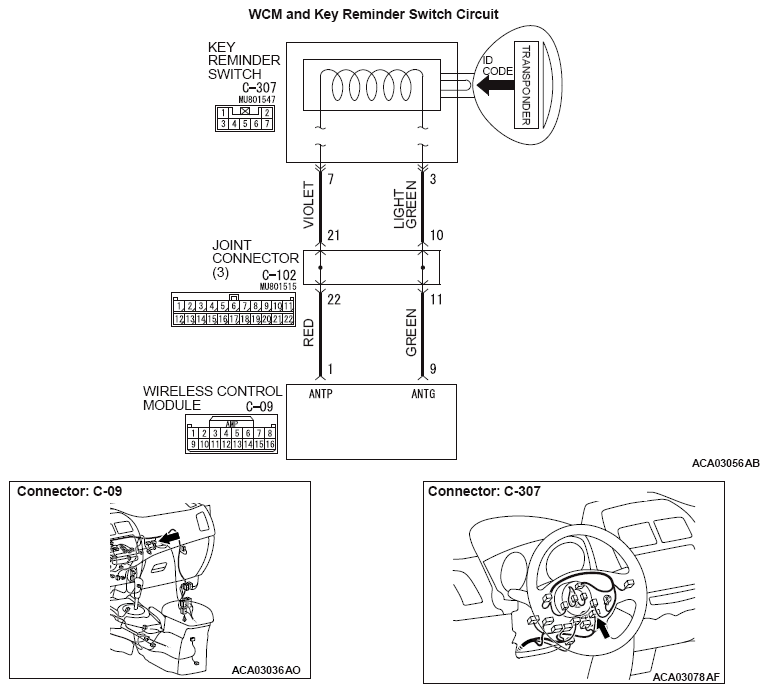

Fig 1: WCM And Key Reminder Switch Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
