System configuration

NOTE: In case of replacement of WCM, all keyless ID, key ID and tire pressure sensor ID should be re-registered using scan tool MB991958 (M.U.T.-III sub-assembly).

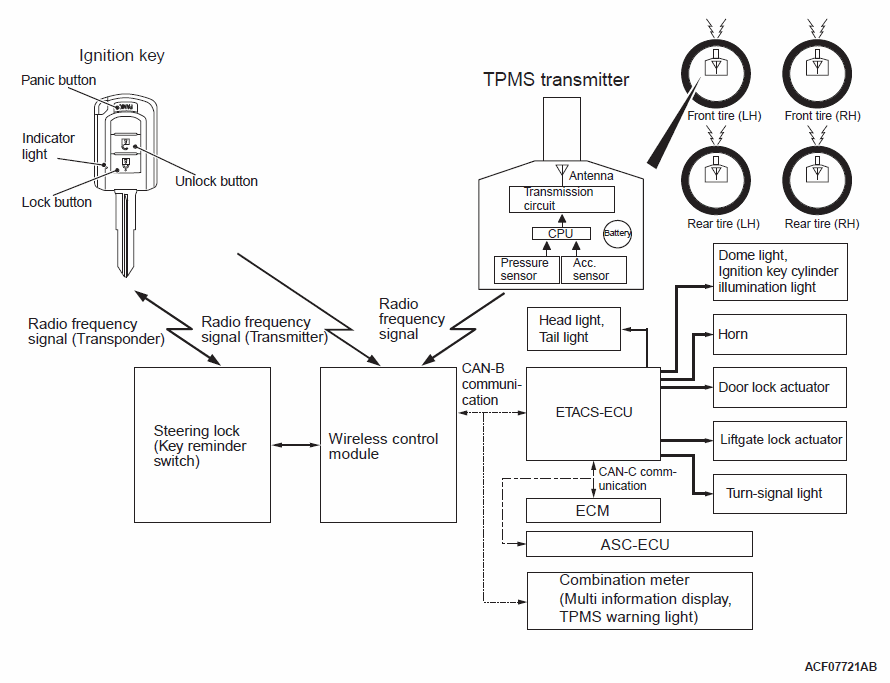

Fig 1: Wireless Control Module System Configuration Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: In case of replacement of WCM, all keyless ID, key ID and tire pressure sensor ID should be re-registered using scan tool MB991958 (M.U.T.-III sub-assembly).
