TPMS Transmitter Removal

CAUTION: Be careful not to damage the TPMS transmitter.

Fix the tire on a tire changing machine. Then apply a bead breaking shoe to the shown range to disengage the tire bead from the wheel rim.
NOTE: For the opposite side, repeat the same procedure.

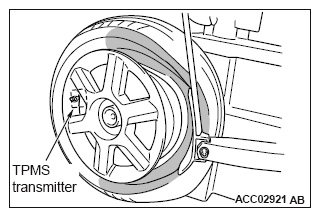

Fig 1: Removing TPMS Transmitter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fix the tire on a tire changing machine so that the TPMS transmitter is positioned as shown.

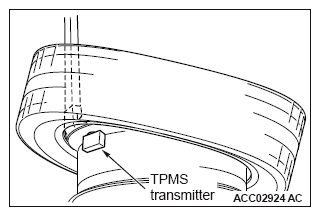

Fig 2: Fixing Tire On Tire Changing Machine TPMS Transmitter Position
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Do not allow any impact or shock to the TPMS transmitter with a tire lever or tire bead.
Use a tire lever to disengage the upper bead.
Rotate the tire in the direction of arrow to disengage the tire bead from the wheel.

Fig 3: Rotating Tire
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fix the tire on a tire changing machine so that the TPMS transmitter is positioned as shown.

Fig 4: Fixing Tire On Tire Changing Machine TPMS Transmitter Position
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Do not allow any impact or shock to the TPMS transmitter with a tire lever or tire bead.
Use a tire lever to disengage the lower bead.

Fig 5: Disengaging Lower Bead Using Tire Lever
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Rotate the tire in the direction of arrow to disengage the tire bead from the wheel.

Fig 6: Rotating Tire
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Do not attempt to remove the TPMS transmitter without depressing the portion indicated by the arrow.
Remove the TPMS transmitter from the valve while depressing the portion indicated by the arrow.

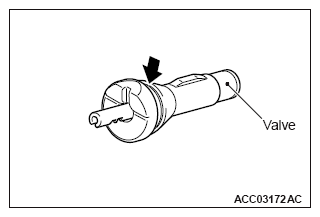

Fig 7: Locating TPMS Transmitter From Valve
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Cut down the entire groove shown by the arrow to remove the valve.

Fig 8: Removing Valve
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
