INSPECTION PROCEDURE 6: DIAGNOSIS MODE cannot be made an entry. Mobile Phone item is not displayed on the INFOR screen of MMCS. (Vehicles with MMCS): Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

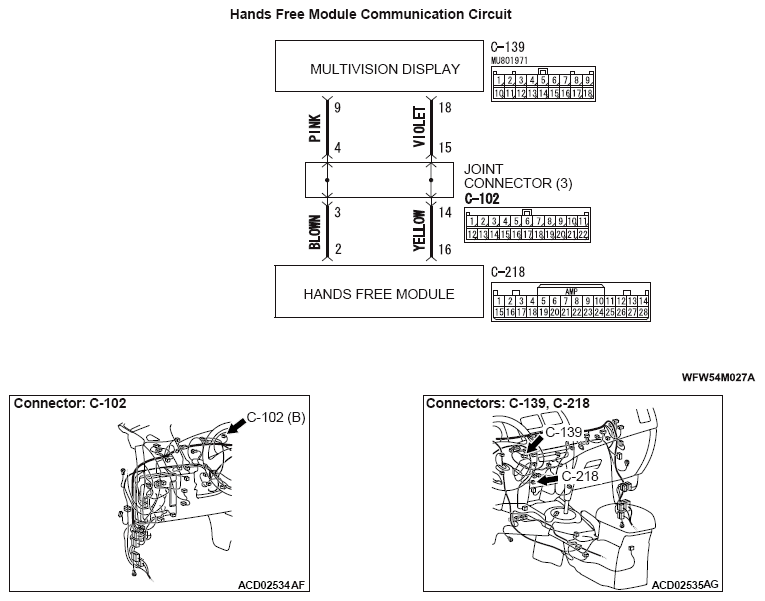

Fig 1: Hands Free Module Communication Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
