Forward Collision Mitigation System (FCM) Switch Check

SWITCH RESISTANCE REFERENCE

Switch position	Terminal number	Specified condition
OFF	7 - 10	No continuity
ON	7 - 10	Continuity exists (2 ohms or less)

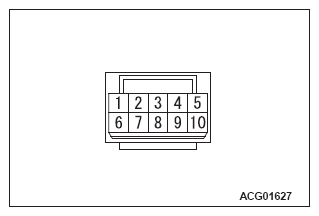

Fig 1: Forward Collision Mitigation System (FCM) Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

AUXILIARY BATTERY VOLTAGE REFERENCE

Auxiliary battery voltage	Terminal number	Normal condition
At no energization	8 (+) - 9 (-)	Not illuminated
With current supply	8 (+) - 9 (-)	Illuminated
