System Update

  1. Select "System Upgrade" button on "Service" screen.

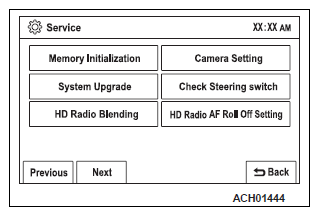

    Fig 1: Screen Display - Select System Upgrade Button On Service
    G12149240Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Select "System update" button on "Update" screen.

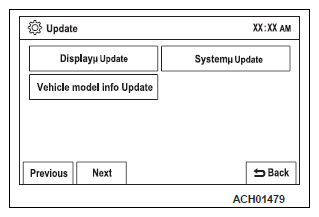

    Fig 2: Screen Display - Select System Update Button On Update
    G12149288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Select "OK" and follow the instructions on the screen.

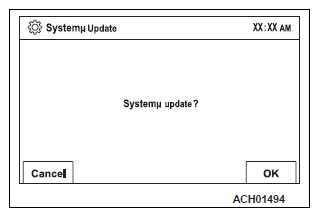

Fig 3: Screen Display - Select OK And Follow Instructions
G12149292Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
