<<A>> Steering Column Switch Assembly Removal

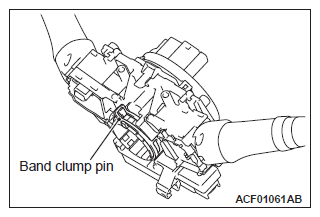

Using a pliers or similar tool, pinch and lift the band clump pin shown in illustration .

Fig 1: Band Clump Pin
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
With the flat-tipped screwdriver inserted into the column shaft groove shown in illustration , lift the claw shown in Section A - A , and then remove the steering column switch assembly by pulling out the steering column switch assembly.

Fig 2: Inserting Flat-Tipped Screwdriver Into Column Shaft Groove

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
