Vehicles For CANADA

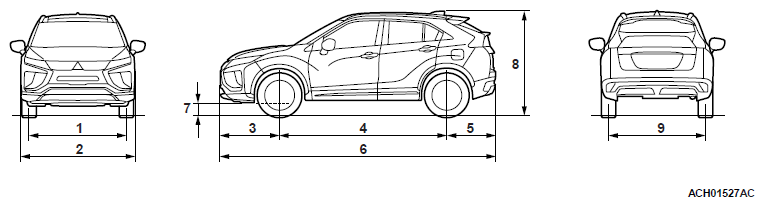

Fig 1: Checking Vehicle Length Dimension (Vehicles For Canada)
G12143496Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Item GK1W
XTMUL3M XTHUL3M
Vehicle dimension mm (in) Front track 1 1, 545 (60.8) 1, 545 (60.8)
Overall width 2 1, 805 (71.1) 1, 805 (71.1)
Front overhang 3 955 (37.6) 955 (37.6)
Wheelbase 4 2, 670 (105.1) 2, 670 (105.1)
Rear overhang 5 780 (30.7) 780 (30.7)
Overall length 6 4, 405 (173.4) 4, 405 (173.4)
Ground clearance (unladen) 7 204 (8.0) 204 (8.0)
Overall height (unladen) 8 1, 685 (66.3) 1, 685 (66.3)
Rear track 9 1, 545 (60.8) 1, 545 (60.8)
Vehicle weight kg (lb) Curb weight Without optional parts 1, 500 (3, 307) 1, 525 (3, 362)
With optional parts 1, 532 (3, 377) 1, 533 (3, 379)
Gross vehicle weight 2, 100 (4, 630) 2, 100 (4, 630)
Gross axle weight rating-front 1, 200 (2, 646) 1, 200 (2, 646)
Gross axle weight rating-rear 1, 160 (2, 557) 1, 160 (2, 557)
Maximum roof load(1) 50 (110) 50 (110)
Gross combination weight 2, 712 (5, 979) 2, 712 (5, 979)
Seating capacity 5 5
Engine Model code 4B40 4B40
Type DOHC MIVEC Direct fuel injection with charge air cooler, turbocharger, gasoline engine DOHC MIVEC Direct fuel injection with charge air cooler, turbocharger, gasoline engine
Total displacement cmS (cu in) 1, 499 (91.5) 1, 499 (91.5)
Maximum output kW/r/min (HP/r/min) 114/5, 500 (152/5, 500) 114/5, 500 (152/5, 500)
Maximum torque N.m/r/min (ft-lb/r/min) 250/2, 000 - 3, 500 (184/2, 000 - 3, 500) 250/2, 000 - 3, 500 (184/2, 000 - 3, 500)
Fuel system Fuel supply system DFI and MFI DFI and MFI
Transaxle Model code F1CJC F1CJC
Type Front wheel drive FWD, INVECS-III CVT with sport mode Front wheel drive FWD, INVECS-III CVT with sport mode
Minimum turning radius m (ft) Body 5.7 (18.7) 5.7 (18.7)
Wheel 5.3 (17.39) 5.3 (17.39)
(1) Vehicles with roof rack.
Item GK1W
XTMUZL3M XTHUZL3M
Vehicle dimension mm (in) Front track 1 1, 540 (60.6) 1, 540 (60.6)
Overall width 2 1, 805 (71.1) 1, 805 (71.1)
Front overhang 3 955 (37.6) 955 (37.6)
Wheelbase 4 2, 670 (105.1) 2, 670 (105.1)
Rear overhang 5 780 (30.7) 780 (30.7)
Overall length 6 4, 405 (173.4) 4, 405 (173.4)
Ground clearance (unladen) 7 215 (8.5) 215 (8.5)
Overall height (unladen) 8 1, 690 (66.5) 1, 690 (66.5)
Rear track 9 1, 540 (60.6) 1, 540 (60.6)
Vehicle weight kg (lb) Curb weight Without optional parts 1, 565 (3, 450) 1, 590 (3, 505)
With optional parts 1, 597 (3, 520) 1, 628 (3, 587)
Gross vehicle weight 2, 100 (4, 630) 2, 100 (4, 630)
Gross axle weight rating-front 1, 200 (2, 646) 1, 200 (2, 646)
Gross axle weight rating-rear 1, 160 (2, 557) 1, 160 (2, 557)
Maximum roof load(1) 50 (110) 50 (110)
Gross combination weight 2, 712 (5, 979) 2, 712 (5, 979)
Seating capacity 5 5
Engine Model code 4B40 4B40
Type DOHC MIVEC Direct fuel injection with charge air cooler, turbocharger, gasoline engine DOHC MIVEC Direct fuel injection with charge air cooler, turbocharger, gasoline engine
Total displacement cm3 (cu in) 1, 499 (91.5) 1, 499 (91.5)
Maximum output kW/r/min (HP/r/min) 114/5, 500 (152/5, 500) 114/5, 500 (152/5, 500)
Maximum torque N.m/r/min (ft-lb/r/min) 250/2, 000 - 3, 500 (184/2, 000 - 3, 500) 250/2, 000 - 3, 500 (184/2, 000 - 3, 500)
Fuel system Fuel supply system DFI and MFI DFI and MFI
Transaxle Model code W1CJC W1CJC
Type Electronic control AWD, INVECS-III CVT with sport mode Electronic control AWD, INVECS-III CVT with sport mode
Minimum turning radius m (ft) Body 5.7 (18.7) 5.7 (18.7)
Wheel 5.3 (17.39) 5.3 (17.39)
(1) Vehicles with roof rack.
