Removal And Installation: Notes

CAUTION: Before removing and installing the front seat assembly, refer to SERVICE PRECAUTIONS

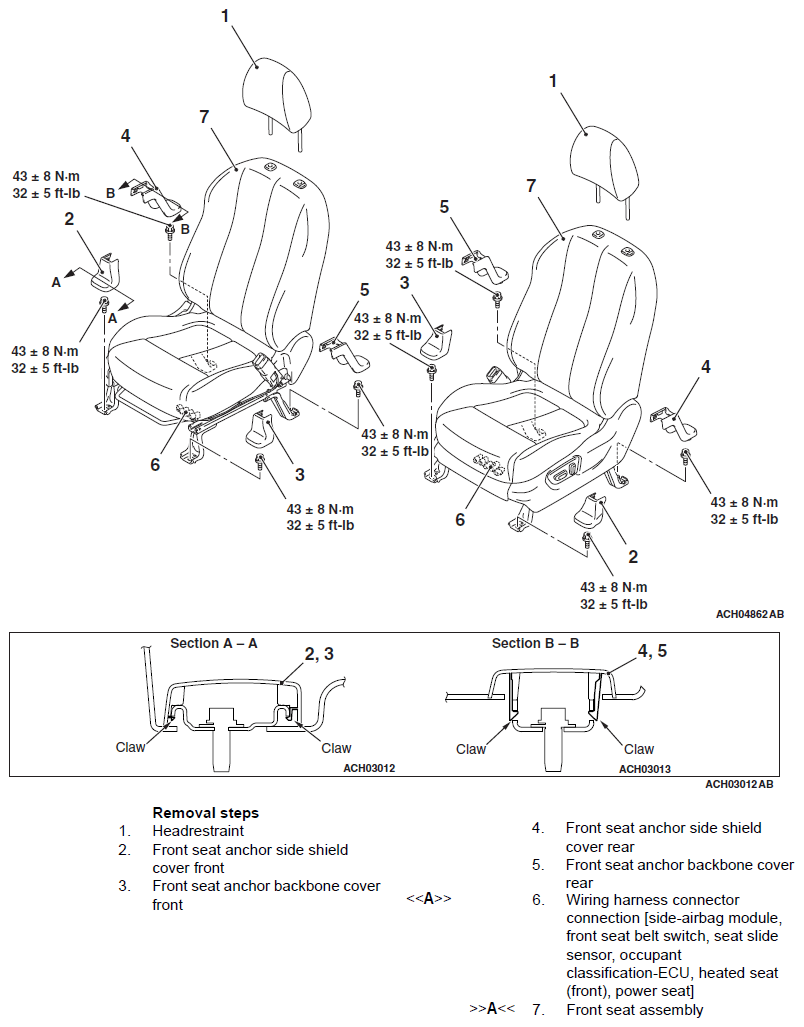

Fig 1: Front Seat Assembly Components With Torque Specifications
G12148617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
