>>A< Rubber Spring/Motor (EPS-Ecu) Installation

  1. Apply grease to the rubber spring.

    Specified grease: Rubber grease

    Amount to use: 0.1 - 1.5 g (0.004 - 0.053 oz)

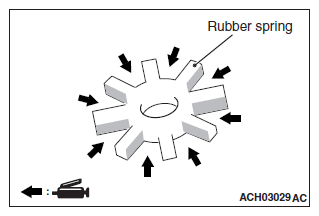

    Fig 1: Applying Grease To Rubber Spring
    G12147911Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Insert the motor, and check that the motor flange moves with the bolts not tightened.

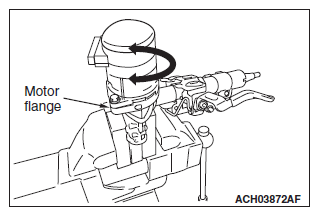

    Fig 2: Checking Motor Flange Moves
    G12147912Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Be careful to avoid scratches or intrusion of foreign materials on the mating surface of the motor and the worm housing.
    • Proceed carefully to ensure that the electric motor does not move, otherwise noise may be caused.
  3. Rotate the steering column shaft at a speed of approximately one turn per second. While doing so, tighten the electric motor mounting bolts alternately by hand.
    NOTE: The steering column shaft can be rotated in either direction (right and left).
  4. Tighten the electric motor mounting bolts to the specified torque.

    Tightening torque: 19 ± 3 N.m (14 ± 2 ft-lb)

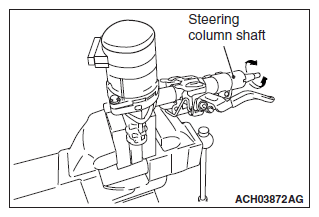

    Fig 3: Rotating Steering Column Shaft
    G12147913Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Install the two nut to the end of the steering column shaft. Then use the preload socket (Special tool: MB990326) to rotate the shaft at a speed of one turn per 4 to 6 seconds, and then measure the total rotation torque.
    NOTE:
    • Be sure to make a note of the measured value, as the value will be used when installing the motor.
    • Rotate by 180°in left and right directions from the neutral position, and measure the total rotation torque.

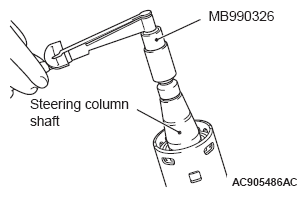

    Fig 4: Measuring Total Rotation Torque
    G07048548Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: If the total rotation torque fluctuation compared with the value measured at removal is ±10% or more, remove the motor again and repeat installation steps  1,  2 and  3.
  6. Connect the wiring harness.
  7. Use a black felt pen to apply a mark near the label as shown as a visual indication that this work has been completed.

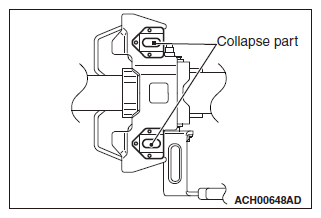

    Fig 5: Locating Collapse Part
    G12147908Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
