>>C<< Body/Bracket Installation <Vehicles With Kos>

  1. Insert the housing from the column shaft end, and then engage the protrusion on the housing with the recess on the steering column shaft assembly.
  2. Tighten the flange bolt to the specified torque.

    Tightening torque: 12 ± 5 N.m (106 ± 44 in-lb)

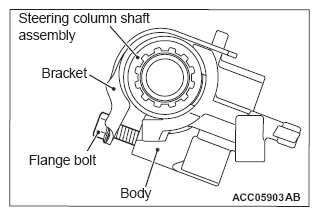

    Fig 1: Installing Flange Bolt
    G10224614Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
