Special Tool

Tool Tool number and name Supersession Application

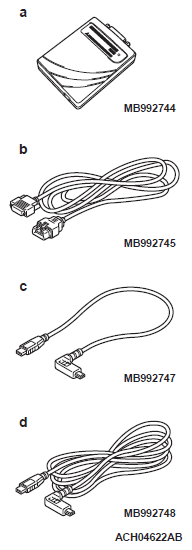

G12143652
  1. MB992744
  2. MB992745
  3. MB992747
  4. MB992748
M.U.T.-IIISE
  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite USB cable short
  4. V.C.I.-Lite USB cable long
 - ECU check (scan tool DTC display and service data display)
G09625236
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adaptor
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G08294095
 MB992006 Extra fine probe - Making voltage and resistance measurement during troubleshooting
