>>E<< Connecting Rod Bearing Installation

Connecting rod bearings are number coded with paint at the illustrated locations. Bearings should be selected based on the following table.

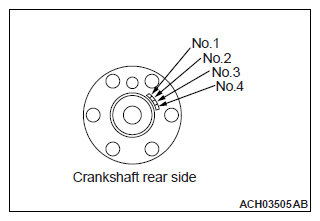

Fig 1: Crankshaft Identification Marks

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Crankshaft Identification mark	Connecting rod Identification mark	Connecting bearing Identification mark
0	1	Black or 1
0	2	None or 2
1	1	None or 2
1	2	Green or 3
2	1	Green or 3
2	2	Blue or 4

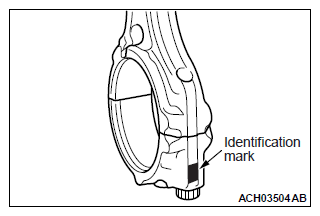

Fig 2: Connecting Rod Identification Mark

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

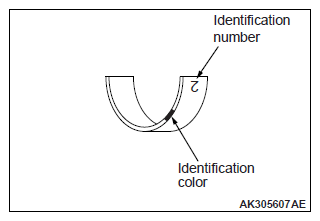

Fig 3: Connecting Bearing Identification Mark

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

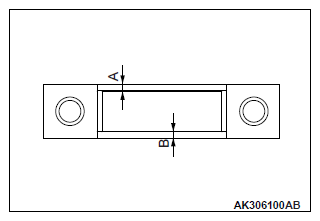

Measure the illustrated location. The error should be within 0.5 mm (0.02 inch).

Fig 4: Checking Journal Diameter Measurement
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
