>>C<< Timing Chain Case Cover A Installation

Apply liquid gasket of 2 ± 0.5 mm (0.08 ± 0.02 inch) of thickness in diameter to the timing chain case cover A or the timing chain case.

Specified sealant:

Three Bond 1217G or equivalent

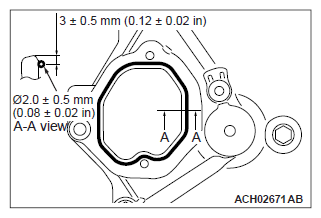

Fig 1: Checking Liquid Gasket Of Thickness In Diameter To Timing Chain Case Cover A Or Timing Chain Case

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
