Removal And Installation: Notes

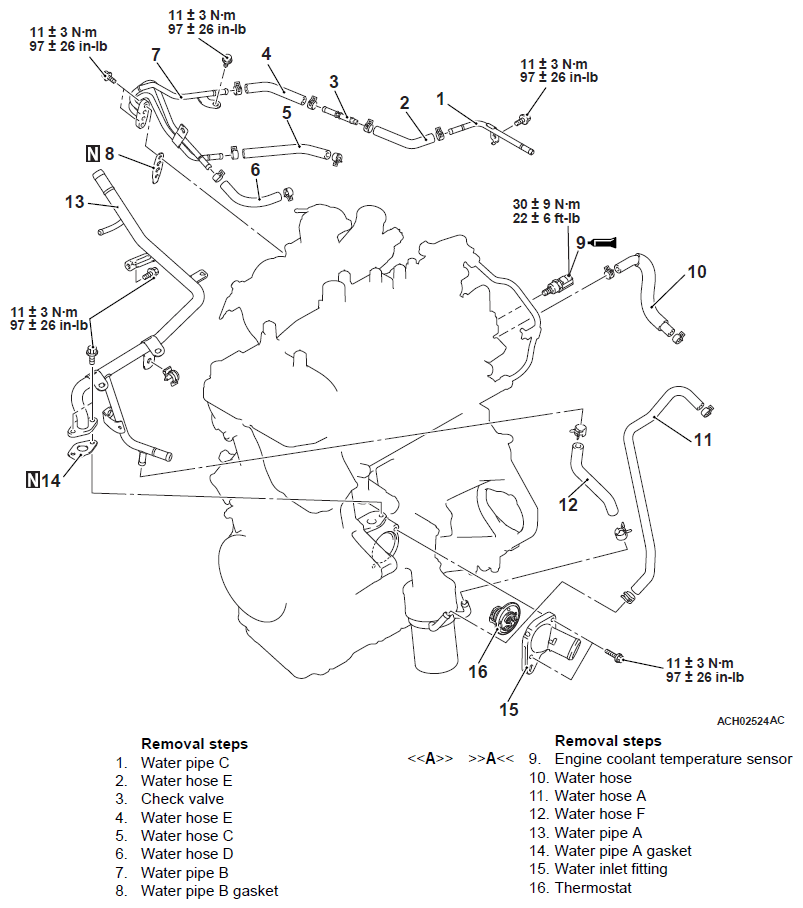

Fig 1: Water Hose And Pipe Component With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB992042: Engine coolant temperature sensor wrench
