Special Tools

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Tool number and name	Supersession	Application

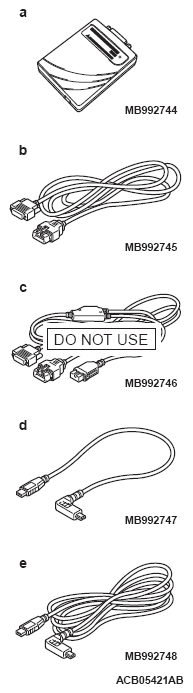

MB992744 MB992745 MB992746 MB992747 MB992748 Vehicle communication interface-Lite (V.C.I.-Lite) V.C.I.-Lite main harness A (for vehicles with CAN communication) V.C.I.-Lite main harness B (for vehicles without CAN communication) V.C.I.-Lite USB cable short V.C.I.-Lite USB cable long	-	CAN bus diagnostics

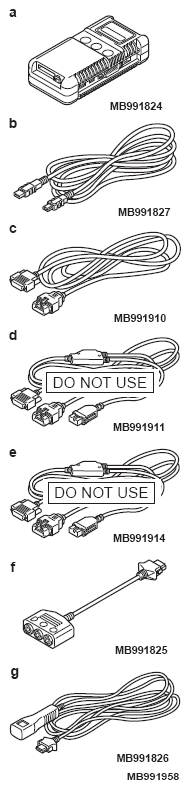

MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle Communication Interface (V.C.I.) M.U.T.-III USB Cable M.U.T.-III Main Harness A (Vehicles with CAN communication system) M.U.T.-III Main Harness B (Vehicles without CAN communication system) M.U.T.-III Main Harness C (for Chrysler models only) M.U.T.-III Measurement Adapter M.U.T.-III Trigger Harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use the M.U.T.-III main harness A to send simulated vehicle speed. If you connect the M.U.T.-III main harness B instead, the CAN communication does not function correctly. CAN bus diagnostics
MB991223 MB991219 MB991220 MB991221 MB991222 Wiring harness set Check harness LED harness LED harness adapter Probe	General service tools	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector. Connector pin contact pressure inspection Power circuit inspection Power circuit inspection Commercial tester connection
Extra fine probe	-	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Wiring harness set	-	Measurement of voltage and resistance at the ASC-ECU
