Precautions On How To Repair The Terminator Resistor

If one-side terminator resistor is broken, the CAN communication will continue although noise suppression is deteriorated. No diagnostic trouble codes may be set even if the terminator resistor was broken. If a damage is found, replace the ECU which incorporates the defective terminator resistor.

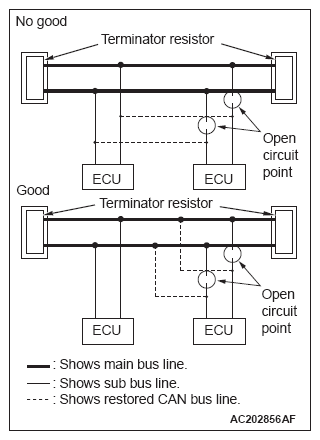

Fig 1: Terminator Resistor Communication Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAN BUS LINE REPAIR HARNESS (PART NAME AND NUMBER)
