Removal And Installation: Notes

Pre-removal and post-installation operation

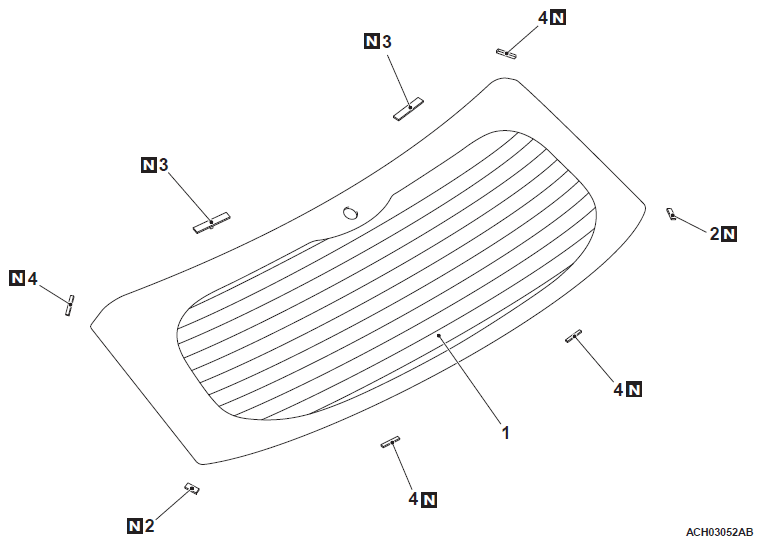

Fig 1: Liftgate Window Glass Components (1 Of 2)
G12147953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

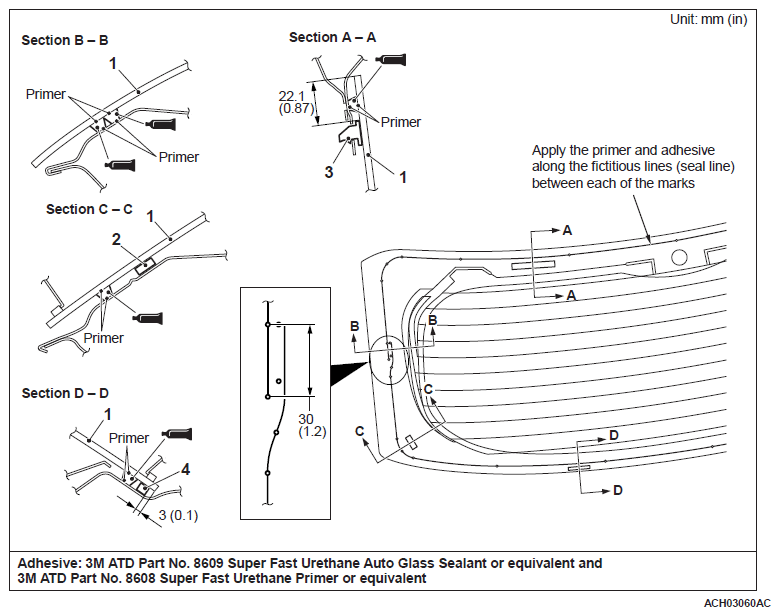

Fig 2: Liftgate Window Glass Components (2 Of 2)
G12147954Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<LIFTGATE EXTRA WINDOW GLASS>

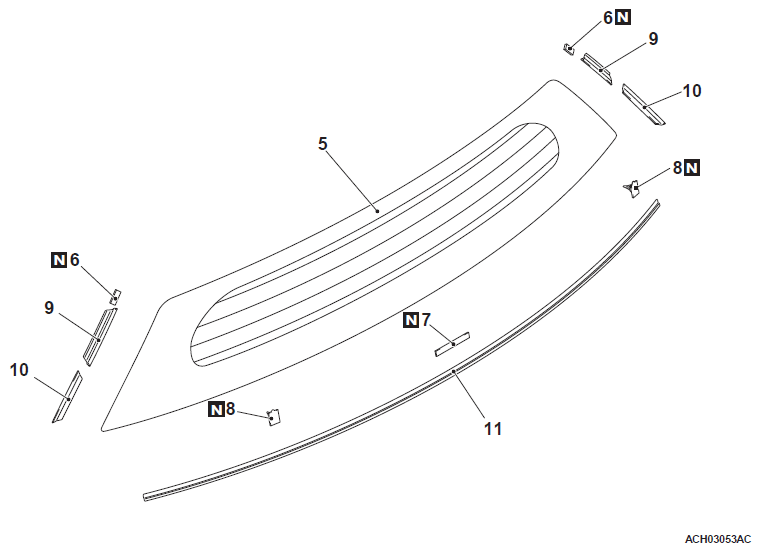

Fig 3: Liftgate Extra Window Glass Components (1 Of 2)
G12147955Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

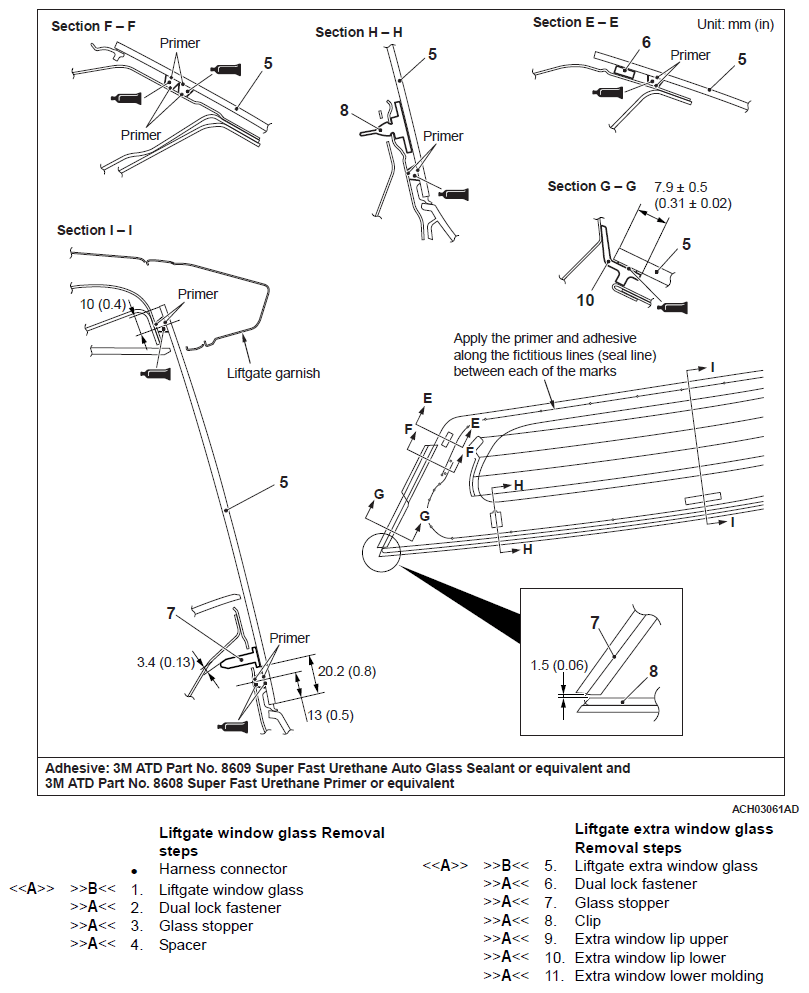

Fig 4: Liftgate Extra Window Glass Components (2 Of 2)
G12147956Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
