Dash Panel

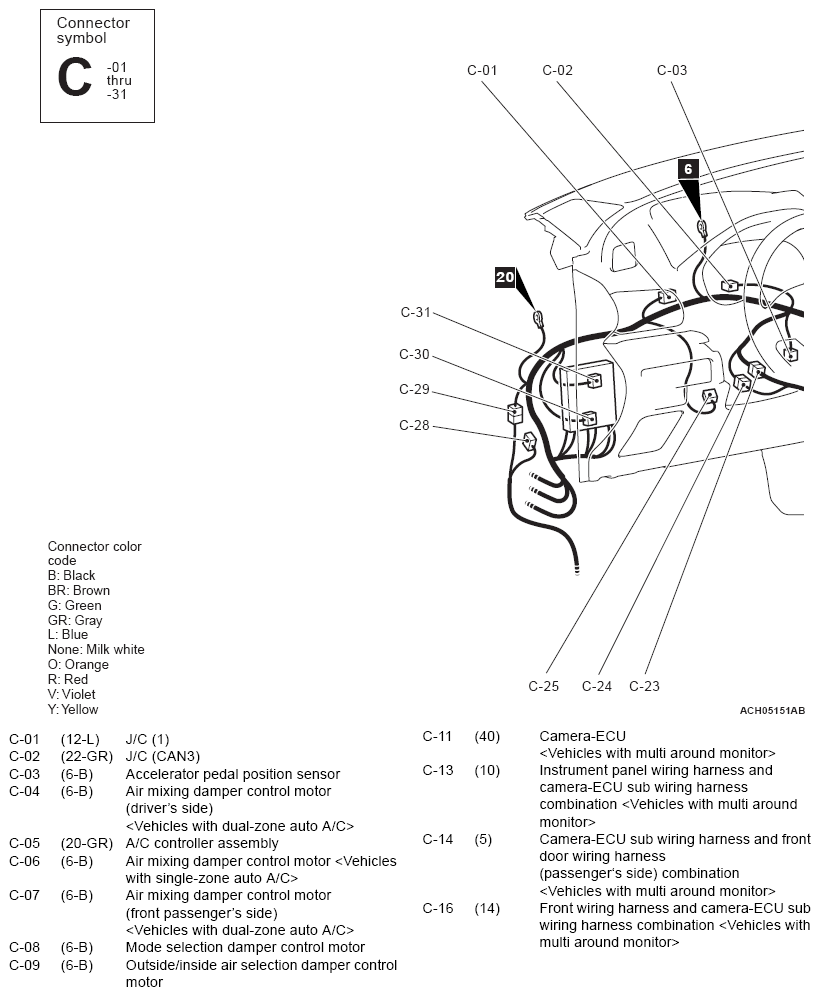

Fig 1: Dash Panel Configuration Diagram (1 Of 8)

G12151561

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

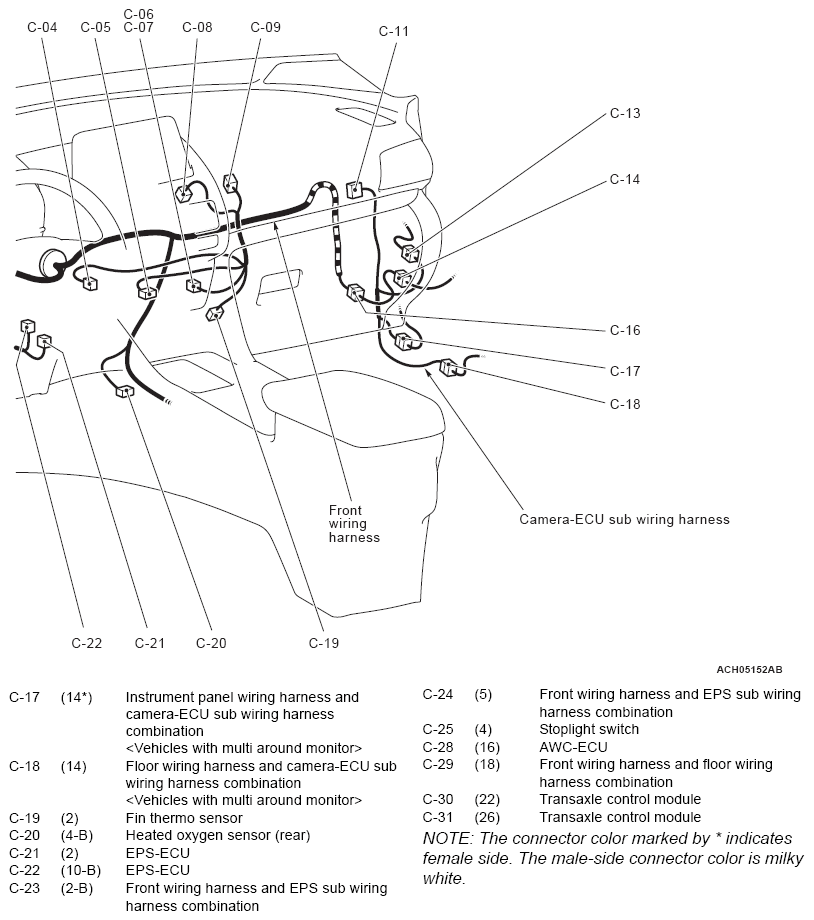

Fig 2: Dash Panel Configuration Diagram (2 Of 8)

G12151562

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

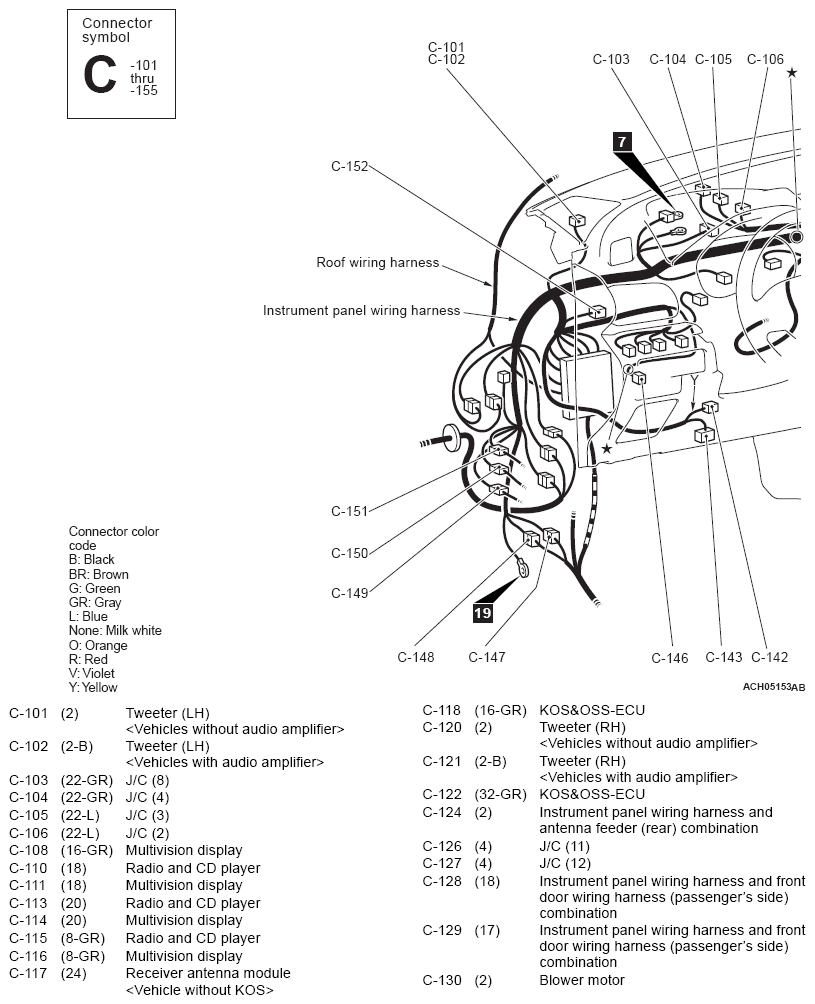

Fig 3: Dash Panel Configuration Diagram (3 Of 8)

G12151563

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

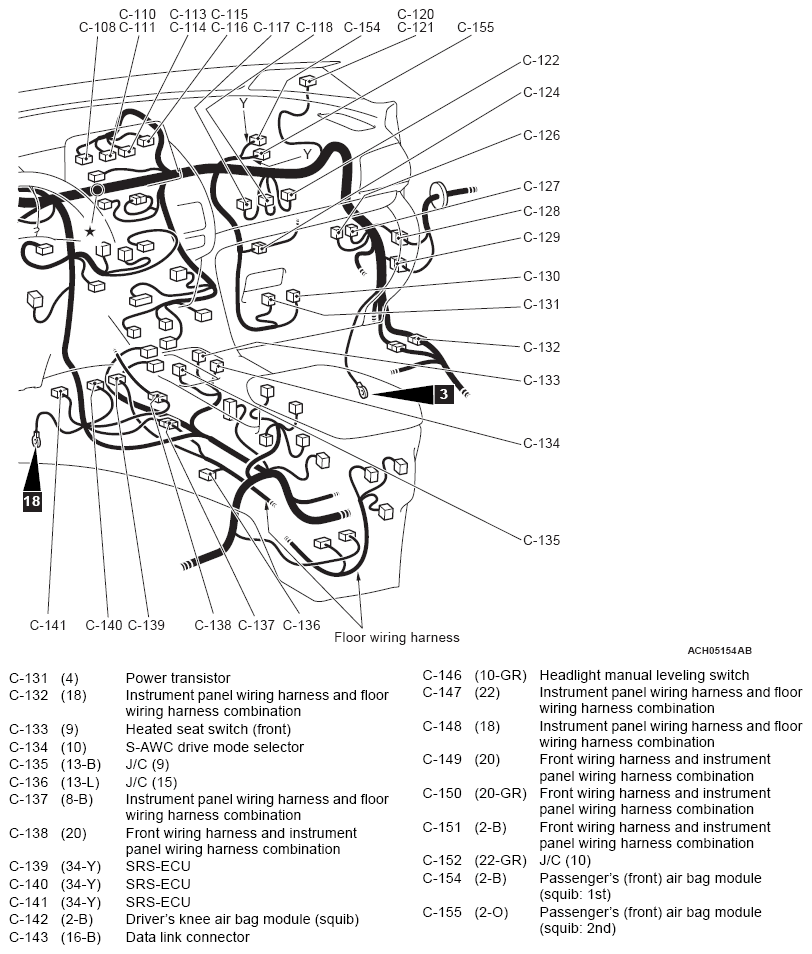

Fig 4: Dash Panel Configuration Diagram (4 Of 8)

G12151564

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

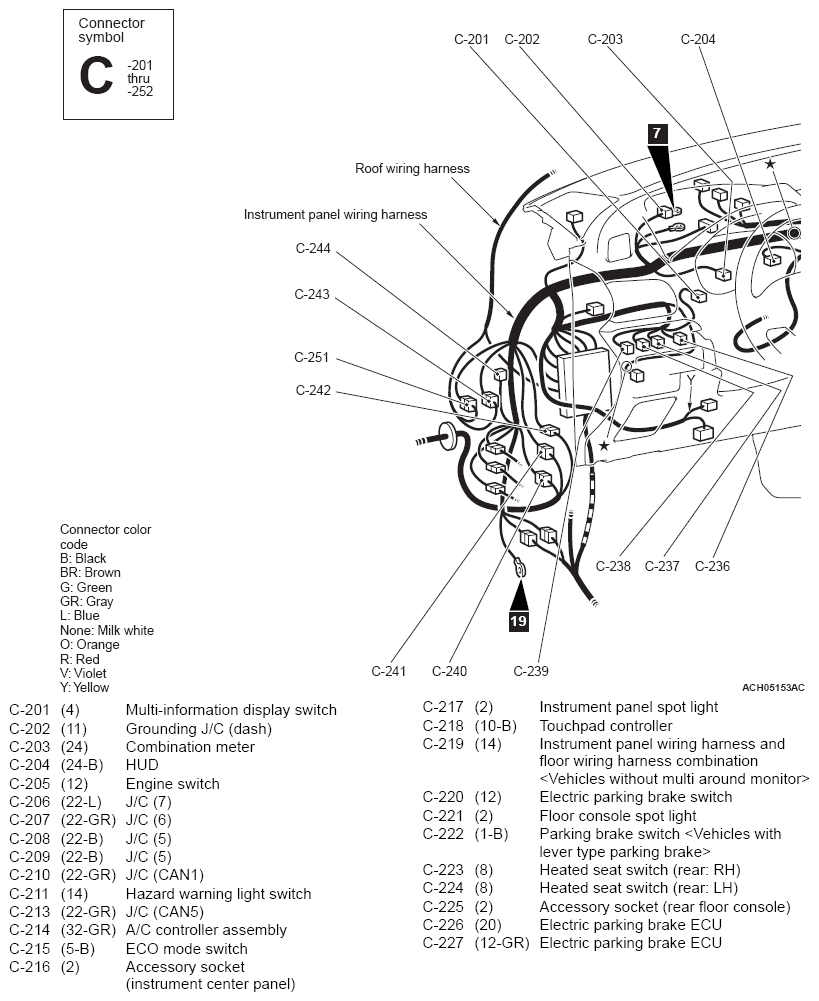

Fig 5: Dash Panel Configuration Diagram (5 Of 8)

G12151565

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

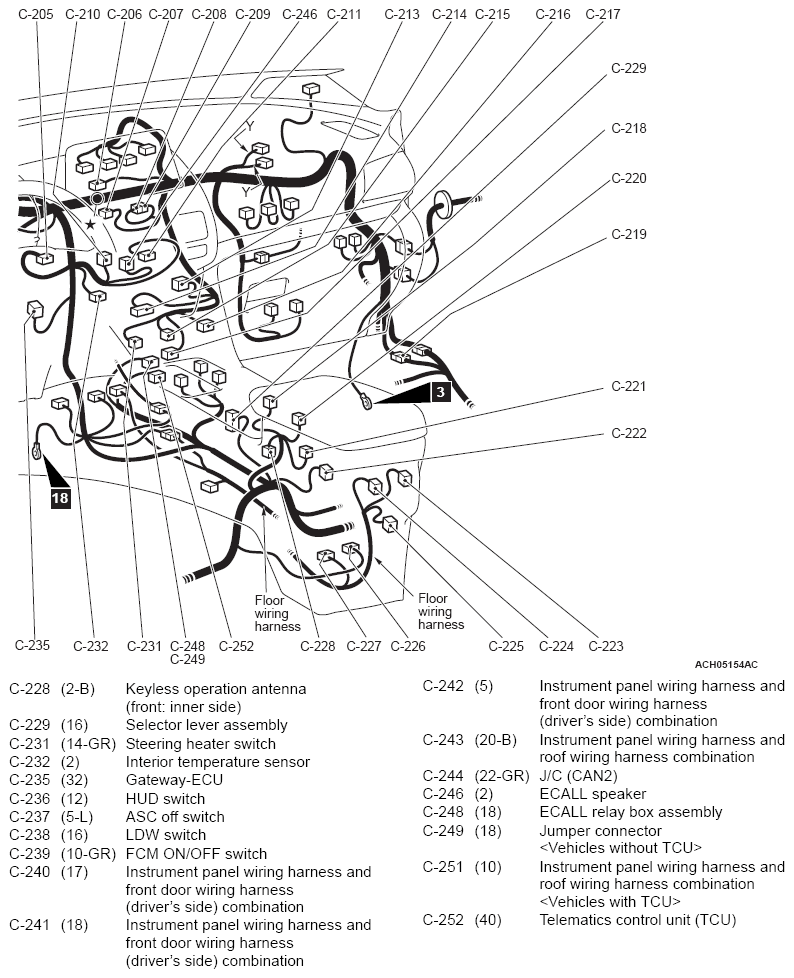

Fig 6: Dash Panel Configuration Diagram (6 Of 8)

G12151566

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

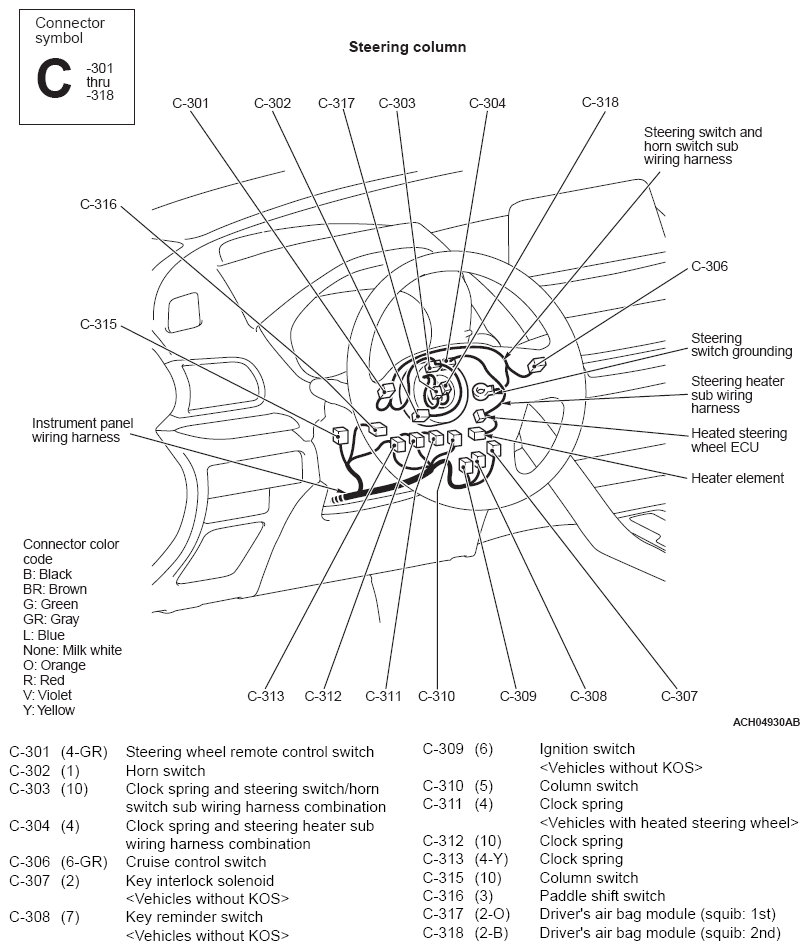

Fig 7: Dash Panel Configuration Diagram (7 Of 8)

G12151567

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

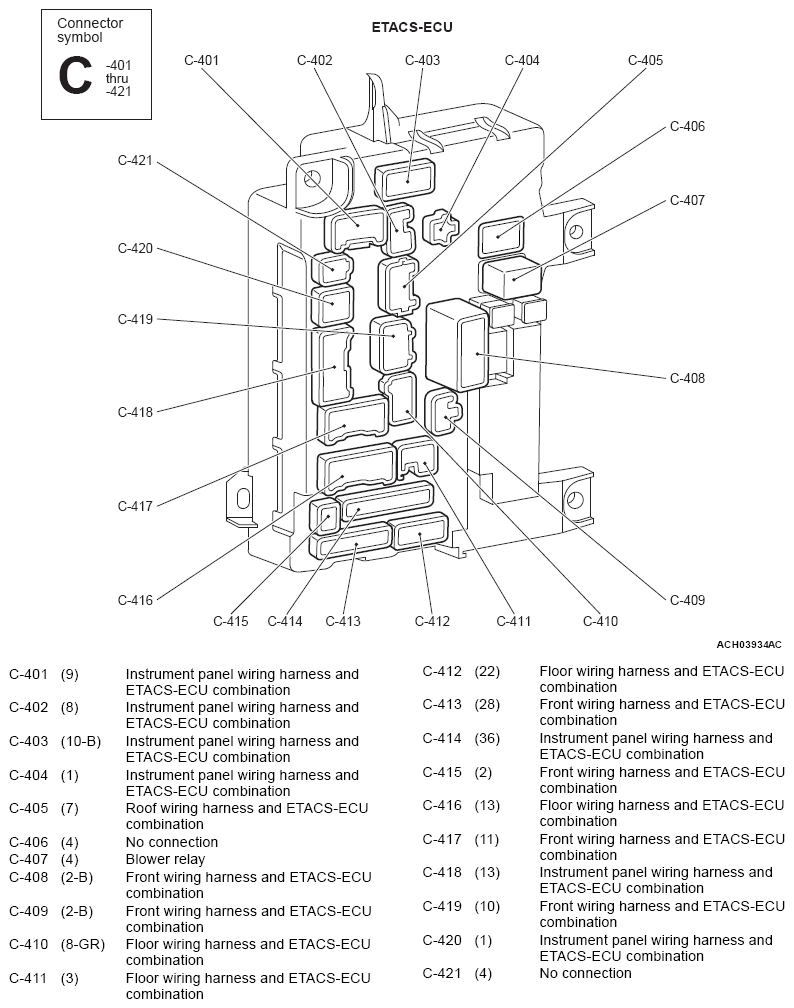

Fig 8: Dash Panel Configuration Diagram (8 Of 8)

G12151568

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
