Removal And Installation
Pre-removal and Post-installation Operation
Engine Room Under Cover Removal and Installation (Refer to
REMOVAL AND INSTALLATION
).

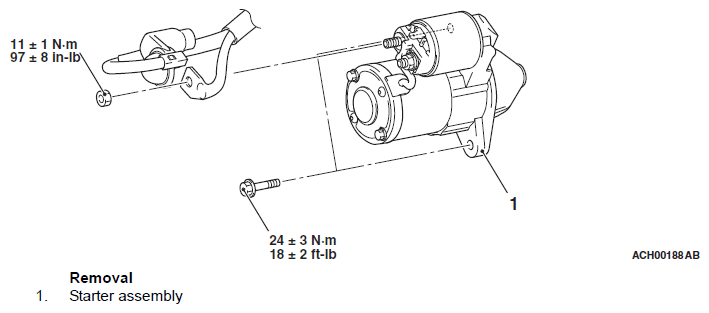

Fig 1: Starter Motor Assembly Component With Torque Specifications
