Removal And Installation

CAUTION:
  • When removing or installing the crank angle sensor, be careful not to apply impact to the sensor.
  • Do not reuse the crank angle sensor that has been dropped.

Pre-removal and Post-installation Operation

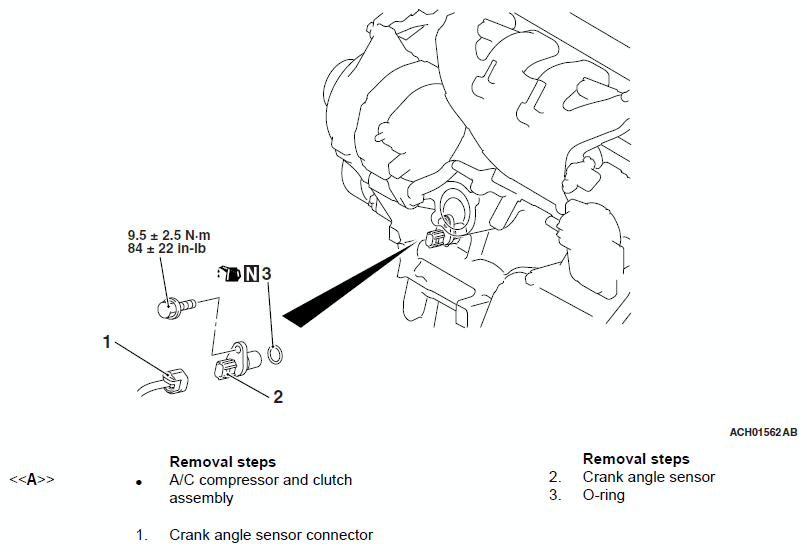

Fig 1: Crankshaft Position Sensor Component With Torque Specifications
G12147100Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
