Magnetic Switch Pull-In Test

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the field coil wire from the M-terminal of the magnetic switch.
CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent the coil from burning.
Connect a 12-volt battery between the S-terminal and M-terminal.
If the pinion moves out, the pull-in coil is good. If it doesn't, replace the starter motor.

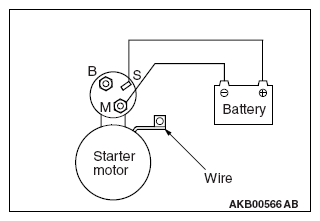

Fig 1: Starter Motor Circuit Diagram (Magnetic Switch Pull-In Test)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
