<<A>> Column Switch Assembly Removal

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a wrench or similar tool, pinch and lift the band clump pin shown in the figure.

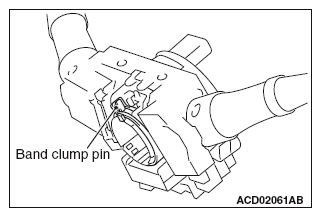

    Fig 1: Band Clump Pin
    G09672086Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Unclip the column switch assembly (five clips).
  3. Remove the column switch assembly by pulling it.

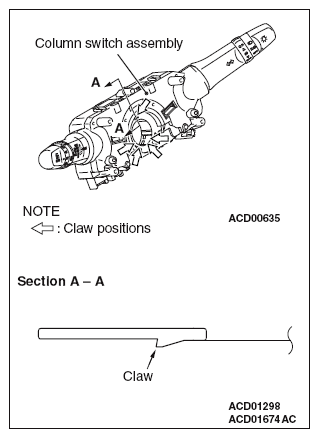

Fig 2: Column Switch Assembly
G09672087Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
