When The S-AWC Control Mode Is Selected By Operating The Drive Mode Selector

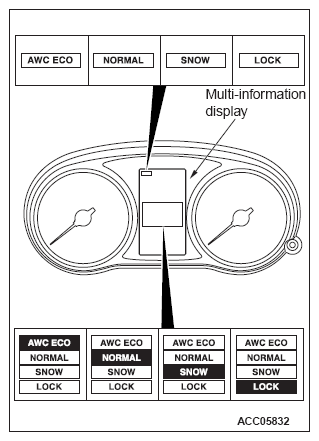

Whenever the drive mode selector is operated, either of "AWC ECO", "NORMAL", "SNOW", "LOCK" should be displayed continuously at the top and briefly at the center on the multi-information display.

G10224505Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
