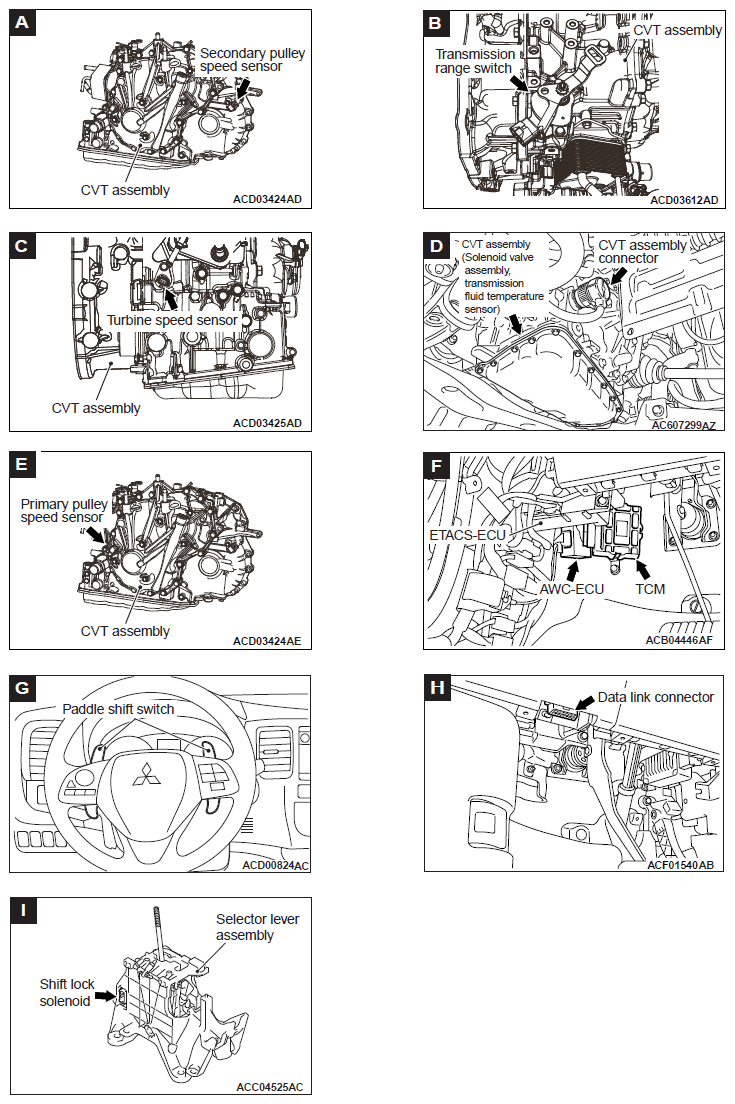

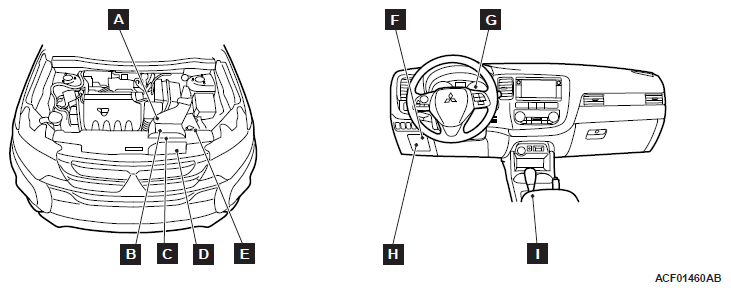

| CVT assembly (Solenoid valve assembly, transmission fluid temperature sensor) |
D |
| TCM |
F |
| Data link connector |
H |
| Transmission range switch |
B |
| Paddle shift switch |
G |
| Primary pulley speed sensor |
E |
| Secondary pulley speed sensor |
A |
| Shift lock solenoid |
I |
| Turbine speed sensor |
C |
| - |
- |
