Removal And Installation: Notes

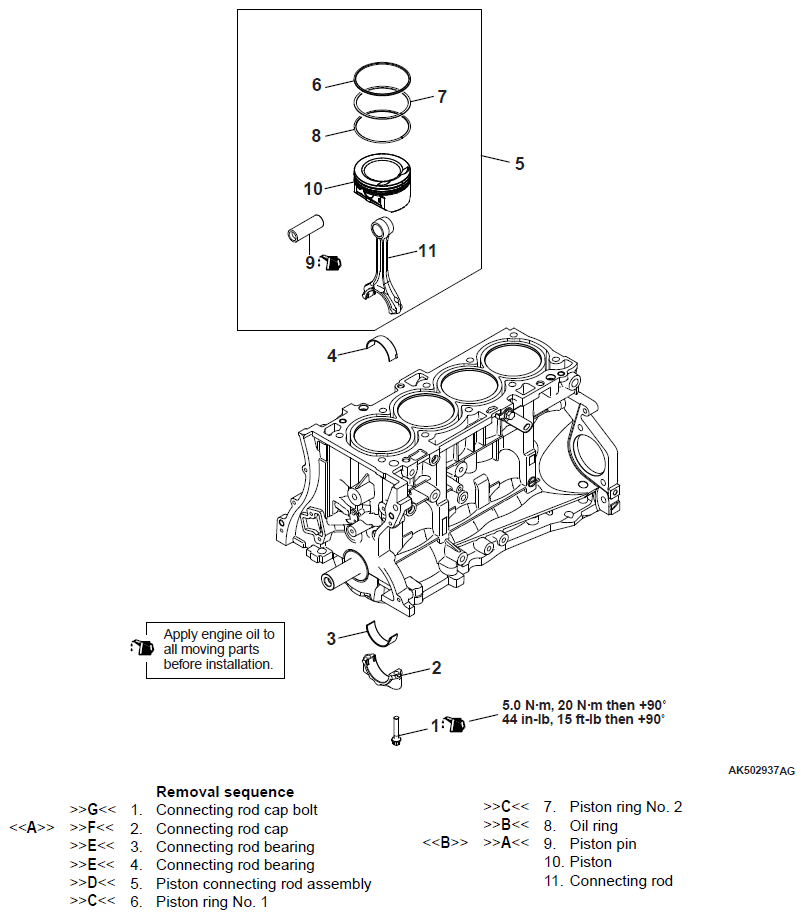

G12358733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
