Control System Component Part Configuration Diagram

Name	Symbol	Name	Symbol
CVT assembly (Solenoid valve assembly, transmission fluid temperature sensor)	D	Shift lock solenoid	I
Data link connector	H	TCM	F
Paddle shift switch	G	Transmission range switch	B
Primary pulley speed sensor	E	Turbine speed sensor	C
Secondary pulley speed sensor	A

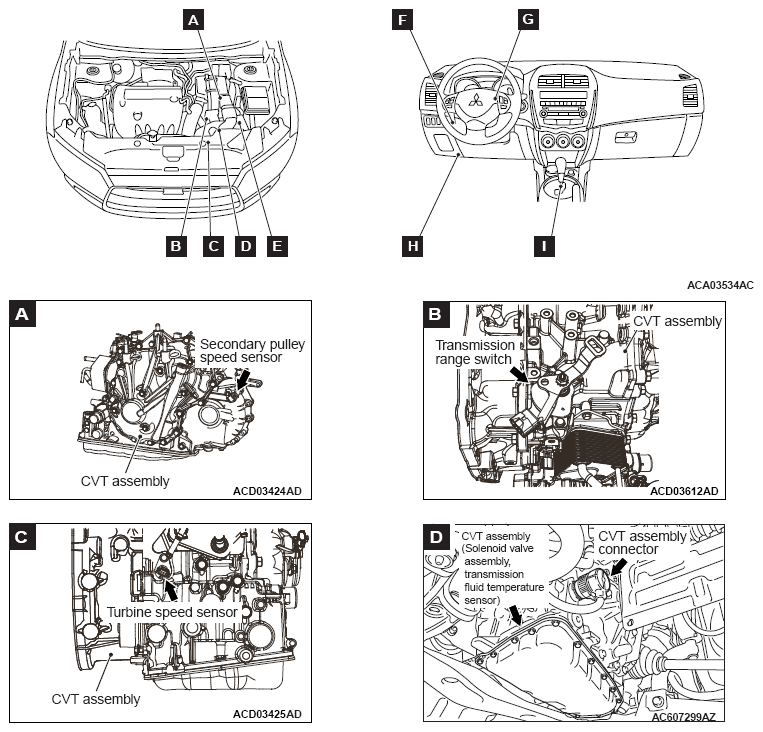

Fig 1: Control System Component Location (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

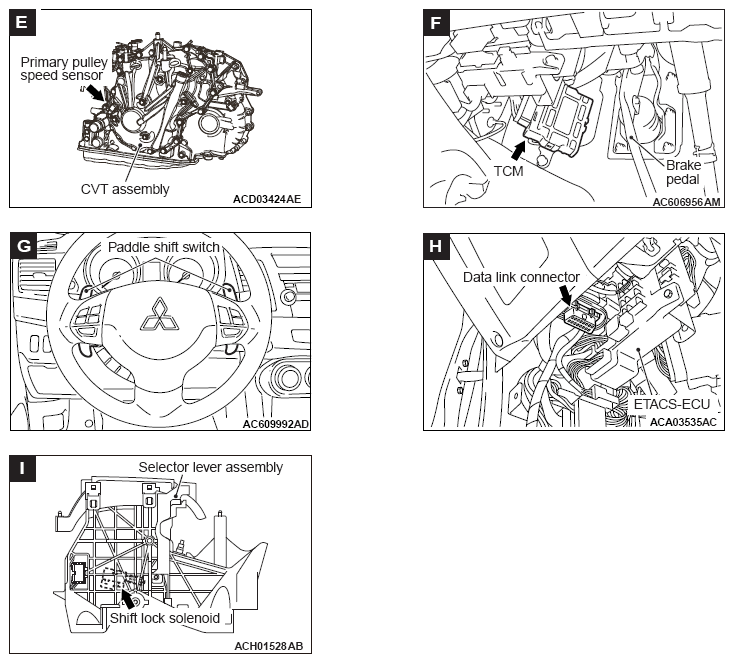

Fig 2: Control System Component Location (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
