Disassembly And Assembly: Notes

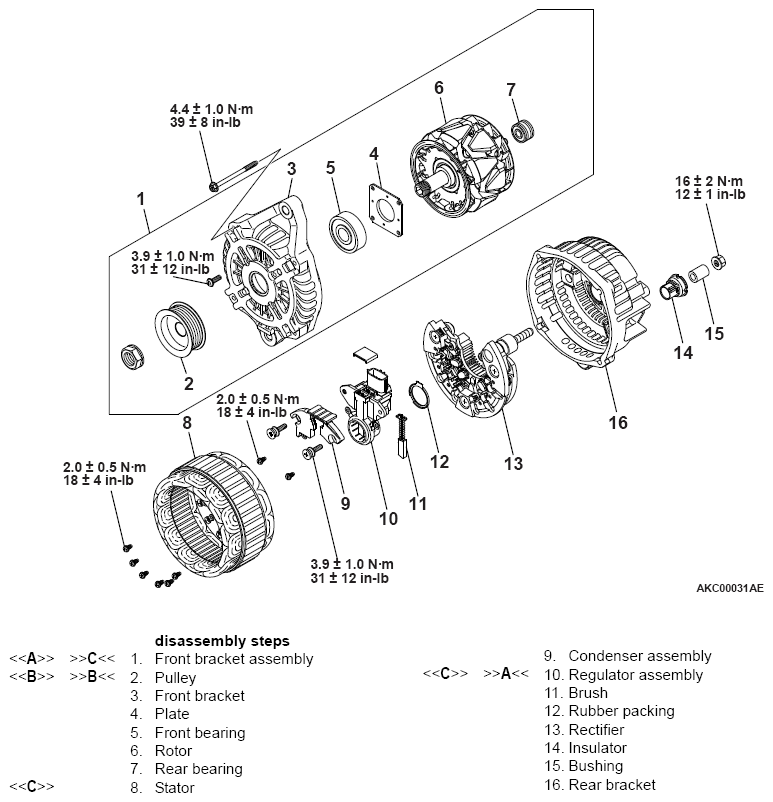

Fig 1: Disassembling And Assembling Generator Assembly Components With Torque Specification
G12158033Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
