<Liftgate Lock Release Handle>

Switch position Terminal number Normal value
ON 1 - 2 Continuity exists (2Q or less)
OFF 1 - 2 No continuity

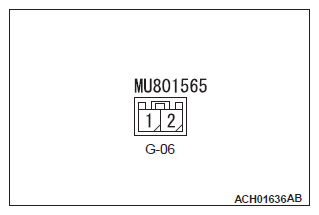

G12148465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
