Checking image from the side view camera (RH)
NOTE:
The left side camera must be also calibrated.

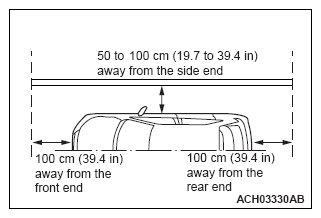

Draw white 10 cm (3.9 inches)-wide lines next to the right side of the vehicle.
Press the camera switch on the steering wheel remote control switch.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

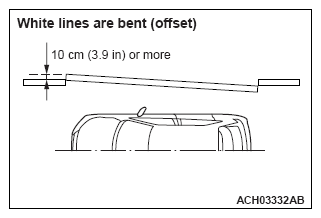

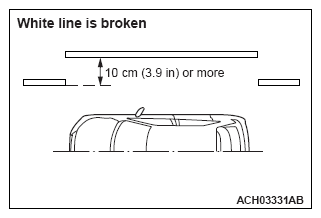

Two white lines should be displayed as "straight line." When the line is broken or offset, calibrate the cameras.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
