<<A>> Steering Column Switch Assembly Removal

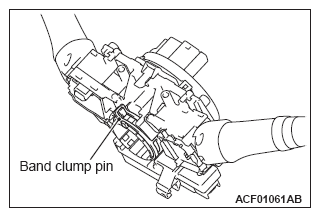

  1. Using a pliers or similar tool, pinch and lift the band clump pin shown in the figure.
    G12128728Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

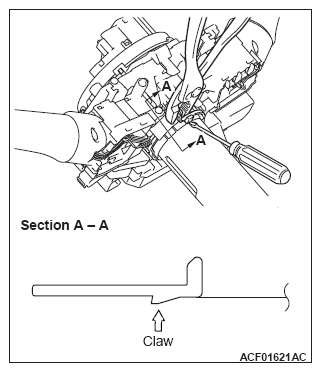

  2. With the flat-tipped screwdriver inserted into the column shaft groove shown in the figure, lift the claw shown in Section A - A, and then remove the steering column switch assembly by pulling out the steering column switch assembly.
    G12128729Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
