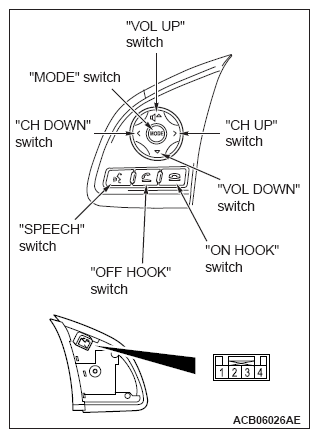

Steering Wheel Audio Remote Control Switch Check: Notes
| Switch Position | Tester Connection | Measurement Value |
|---|---|---|
| "MODE" switch pushed | 1 - 2 | Approximately 270 Ω |
| "CH UP" switch pushed | Approximately 740 Ω | |
| "CH DOWN" switch pushed | Approximately 1.3 kΩ | |
| "VOL UP" switch pushed | Approximately 2.1 kΩ | |
| "VOL DOWN" switch pushed | Approximately 3.1 kΩ | |
| "SPEECH" switch pushed <Vehicles with smartphone link display switch> | Approximately 4.6 kΩ | |
| "OFF HOOK" switch pushed | Approximately 6.3 kΩ | |
| "ON HOOK" switch pushed | Approximately 8.6 kΩ |
