Multi-Information Display Switch Check

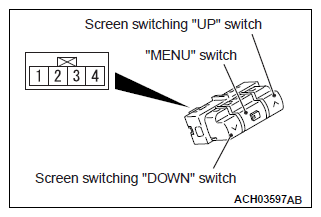

Switch resistance check
| Switch position | Terminal number | Normal condition | |
|---|---|---|---|
| Multi-information display switch: Not operated | 1 - 2 | No continuity | |
| Multi-information display switch: Operated | "MENU" switch | Continuity exists (2 Ω or less) | |
| Screen switching "UP" switch | Approximately 470 Ω | ||
| Screen switching "DOWN" switch | Approximately 330 Ω | ||
Illumination check
| Battery voltage | Terminal number | Normal condition |
|---|---|---|
| Not applied | 2 (+) - 3 (-) | Not illuminated |
| Applied | Illuminated |
