How To Read Circuit Diagrams: Notes

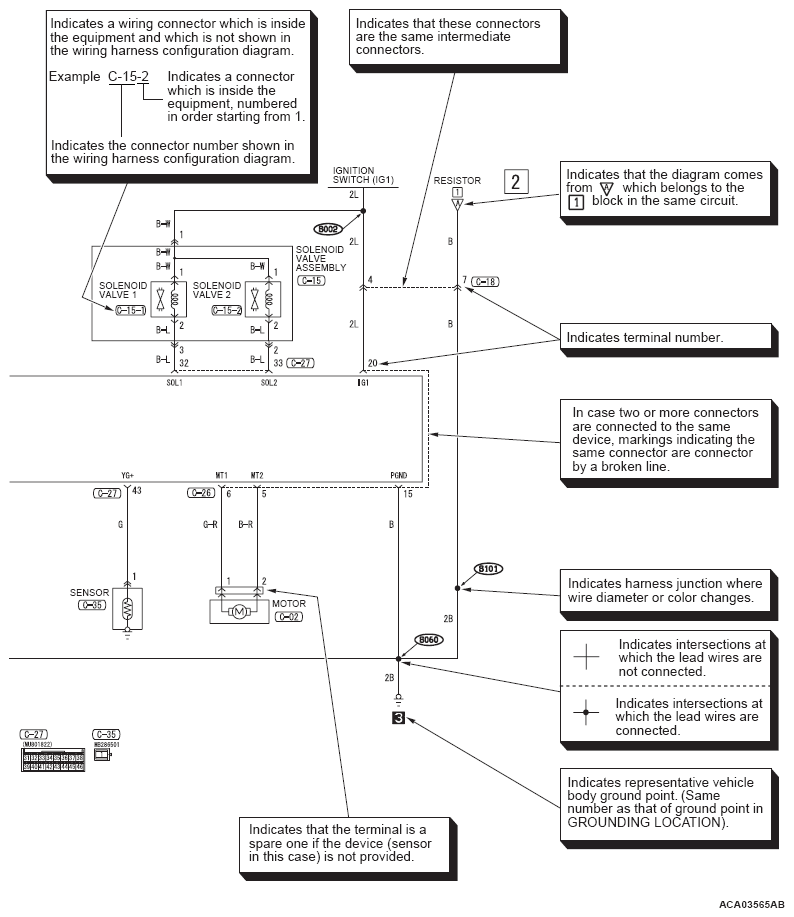

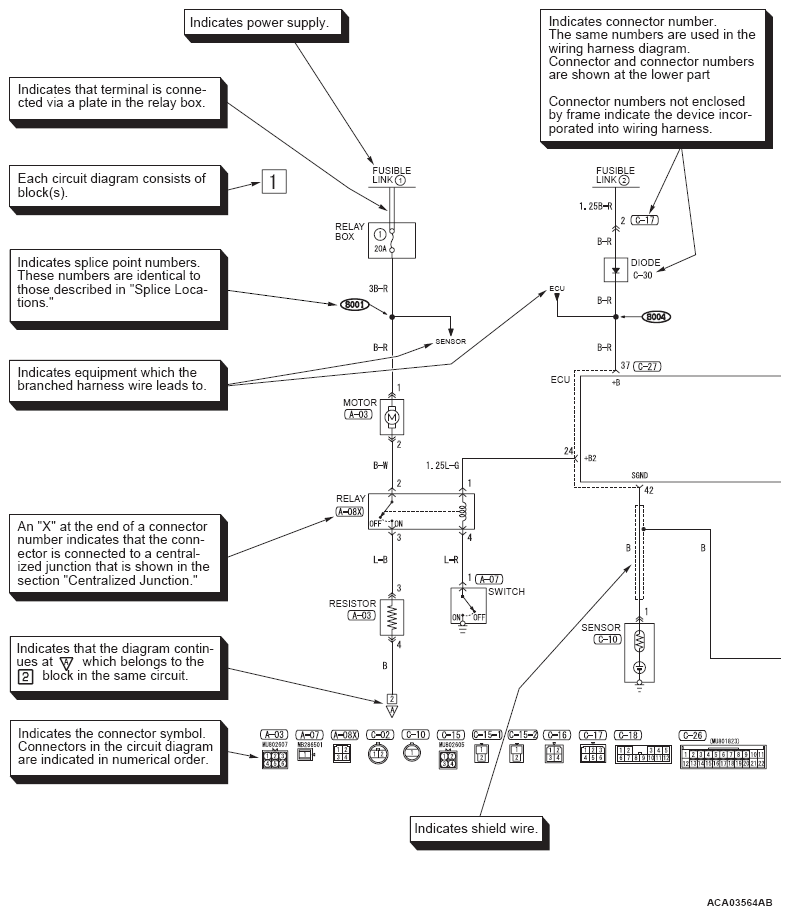

The circuit of each system from the fuse (or fusible link) to ground is shown in the illustration. The power supply is shown at the top and the ground at the bottom to facilitate understanding of how the current flows. Some variations are included in one circuit diagram. Accordingly, some diagrams may not be applicable for individual vehicles. The circuit diagrams show the state when switches are operated.
