Driver's Air Bag Module
DANGER
Never attempt to measure the circuit resistance of the air bag modules (squib), even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result, and possible serious personal injury.
WARNING:
If any component damage is found during the following inspection, replace the air bag module with a new one. Dispose of the old one according to the specified procedure (Refer to PASSENGER'S AIR BAG ON/OFF INDICATOR LIGHT ).
If any malfunction is found in the following inspections, replace the air bag module with a new one.
- Pad cover dent, crack or deformation
- Check the harness and connector for damage and the terminal for deformation.

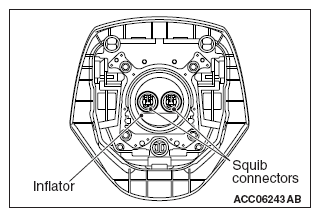

- Check the air bag inflator cases for dents, cracks or deformation.
- Check the air bag module for proper installation.
