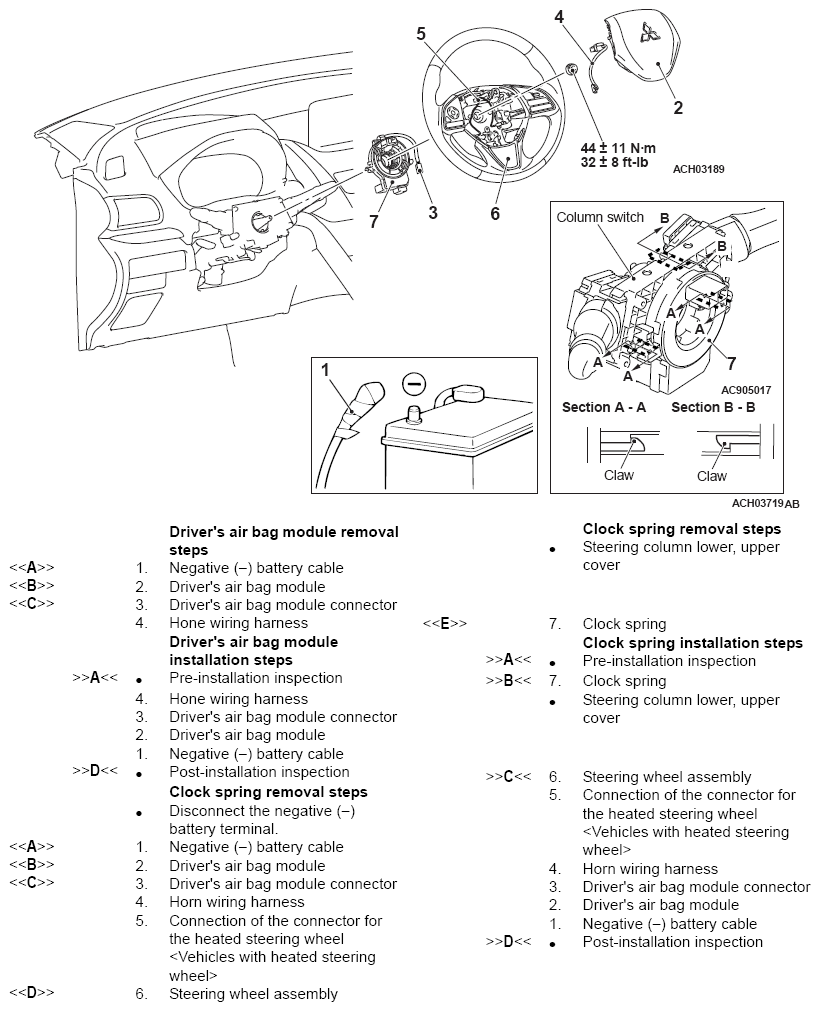

Removal And Installation: Notes
WARNING:
- Never attempt to disassemble or repair the air bag modules or clock spring. If faulty, replace it.
- Do not drop the air bag modules or clock spring or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
- The air bag modules should be stored on a flat surface with the pad cover facing upward. Do not place anything on top of it.
- Do not expose the air bag modules to temperatures over 93°C (199°F).
- After the air bag deployment, replace the air bag module with a new one. Also, check the clock spring, and replace with a new part if there is an abnormality.
- Wear gloves and safety glasses when handling air bags that have already deployed.
- Certain components of this vehicle, such as air bag modules and seat belt pre-tensioners, may contain perchlorate materials. Before deployment and/or disposal of these components, review and comply with all applicable Federal, state and local regulations.
- An undeployed air bag module should only be disposed of in accordance with the procedures (Refer to PASSENGER'S AIR BAG ON/OFF INDICATOR LIGHT ).
- When the steering wheel sensor is replaced or installed, always carry out calibration to make ASC-ECU learn the neutral point (Refer to ON-VEHICLE SERVICE, STEERING WHEEL SENSOR CALIBRATION ).
Pre-removal operation
- Check that the front wheels are at the straight-ahead position.
- Turn the ignition switch to the "LOCK" (OFF) position.
