<<C>> Driver's Air Bag Module Connector Removal

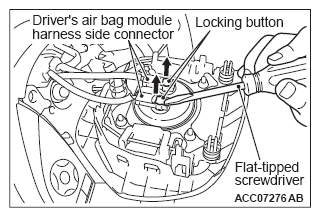

  1. Use the flat-tipped screwdriver to pull out the locking button of wiring harness side connector, and release the lock.
G11280620Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
