Removal And Installation: Notes

CAUTION: After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION ).

Pre-removal and Post-installation Operation

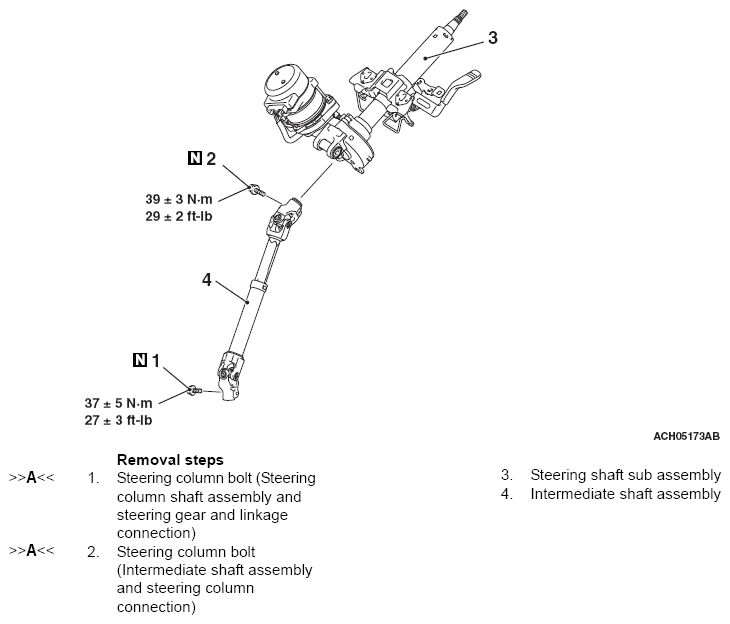

Fig 1: Removing/Installing Intermediate Shaft Assembly Components With Torque Specification
G12649518Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
