>>B<< Steering Column Band Installation
CAUTION:
- There must be no clearance between the torque sensor wiring harness and the housing.
- On completion, check the followings.
- The wiring harness must be free of twists, sharp bend.
- The wiring harness must be secured without looseness.

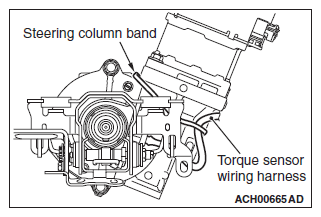

Tie the wiring harness wires with the steering column band.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
