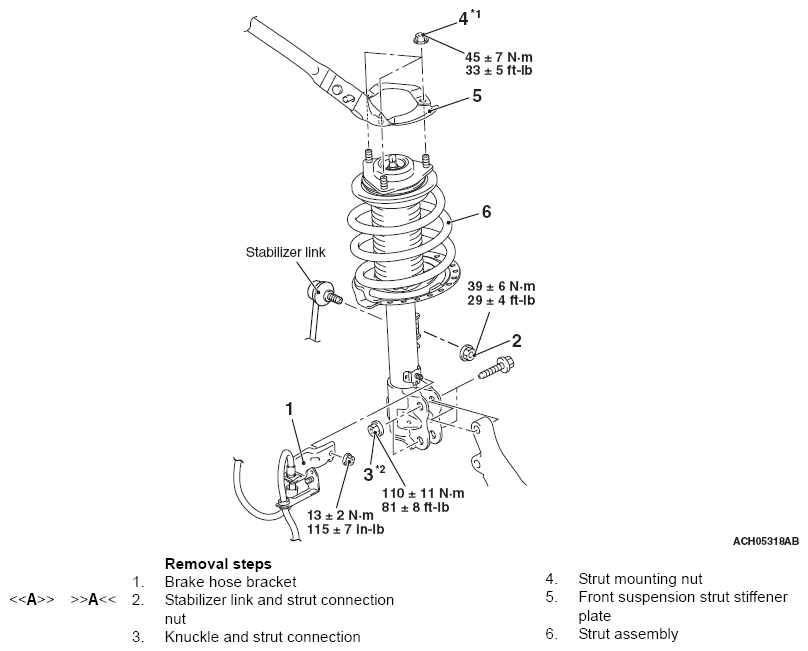

Removal And Installation: Notes
CAUTION:
- The parts indicated by *1 indicates parts which should be temporarily tightened, and then fully tightened with the vehicle standing on the ground at curb weight.
- The parts indicated by *2 are the nuts with friction coefficient stabilizer. Prior to reinstallation, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
Post-installation Operation
- Front Wheel Alignment Check and Adjustment (Refer to ON-VEHICLE SERVICE ).
