Shift Lock Solenoid

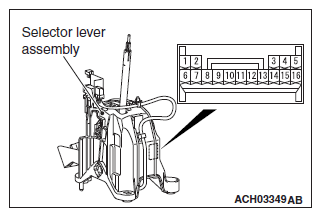

  1. Measure the resistance between terminal No. 10 and No. 16 of the selector lever assembly connector.

    Standard value: 40  ± 2.0  Ω

  2. When the resistance is outside the standard value, replace the selector lever assembly.
    G12147265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
