Select Control

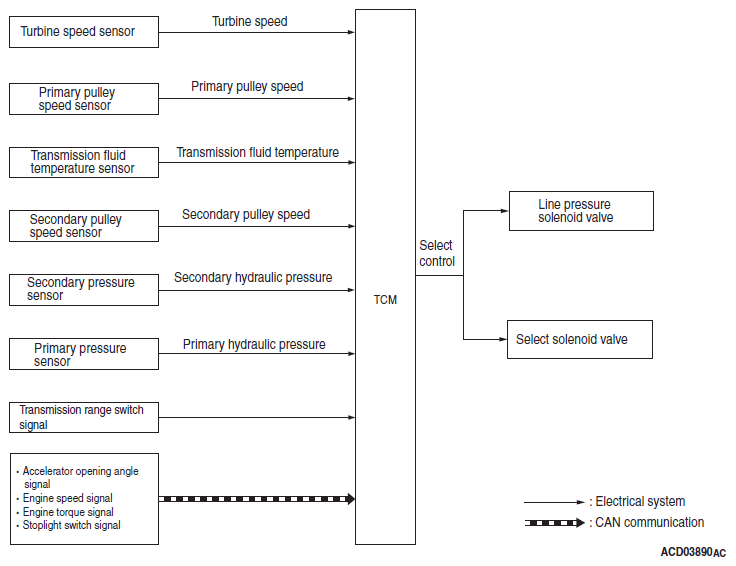

G12147155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When an operation of N โ†’ D or P โ†’ R range is performed, the optimal operating pressure is set based on the accelerator angle, engine speed, primary pulley speed, secondary pulley speed and turbine speed to reduce the shock caused by shifting.
