>>B<< Valve Body Assembly Installation

Install the control valve assembly on the transaxle case as follows.

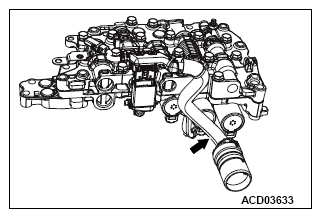

1. Install the valve body harness on the control valve assembly.
   CAUTION:

   • Push in the valve body harness until the detent contacts the transaxle case.
   • Be careful not to cause damage to the terminal body.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

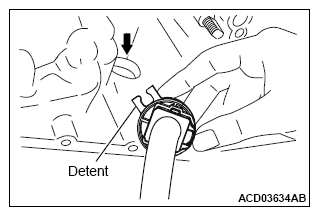

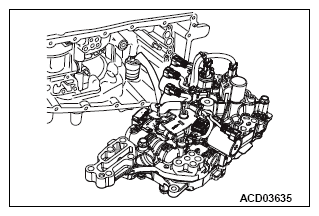

2. Install the terminal body on the transaxle case, while aligning the detent of terminal body with the transaxle case as shown in the illustration.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

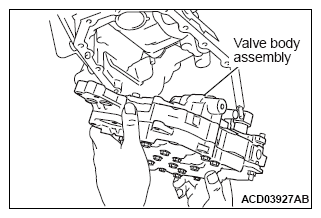

3. Slide the control valve assembly from the left side, and install it on the transaxle case.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

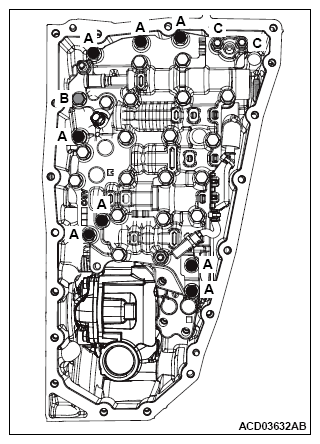

4. Install the fastening bolts of control valve assembly, and tighten to the specified torque of 7.9 N.m (70 in-lb).

   Bolt symbol	A	B	C
   Shank length mm (inch)	54 (2.1)	44 (1.7)	54 (2.1)
   Quantity	8	1	2

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
